| Brand Name : | Opti-S |
| Model Number : | OS-XU01GW |
| Certification : | IS9001 |
| Price : | negotiable |
| Payment Terms : | T/T |
1. Product Description

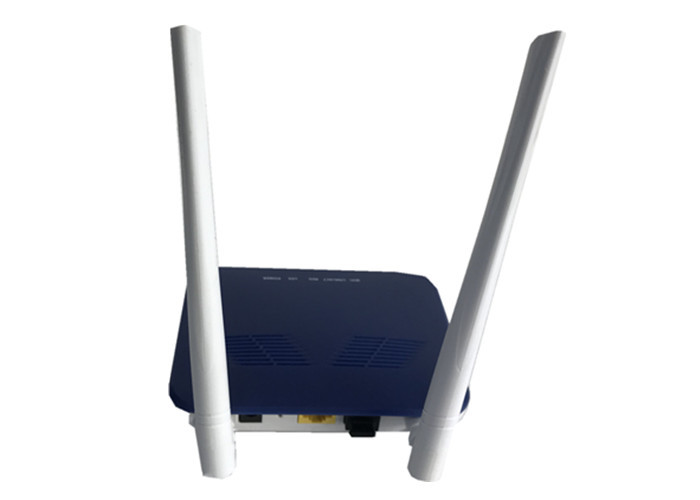

OS-XU01GW is XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a powerful firewall function.
Features:
Ø HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø WiFi support 802.11n speed up to 300Mbps
Ø Support No-auth, WEP, WPA-PSK and WPA2-PSK.
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
3. Technical parameters
| Items | Unit | Specifications |
| PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
| Optical interface | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM | |
| Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | nm | Tx1310, Rx 1490 |
| Interface | data | 1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| Wireless | Compliant with IEEE802.11b/g/n, 300Mbps | |
| Indicator | LED | POWER, LOS, PON, LAN, WIFI |
| Operating condition | ℃ | Operating temp: -5 ~ +55 |
| Storing condition | ℃ | Storing temp: -30 ~ +60 |
| Humidity | % | 10~90(non-condensing) |
| Power supply | V | DC 12V,0.5A adapter |
| Power consumption | W | ≤6 |
| Dimension | mm | 120×78×30(L×W×H) |
| Net weight | Kg | 0.13 |
|
|
