Product Overview:

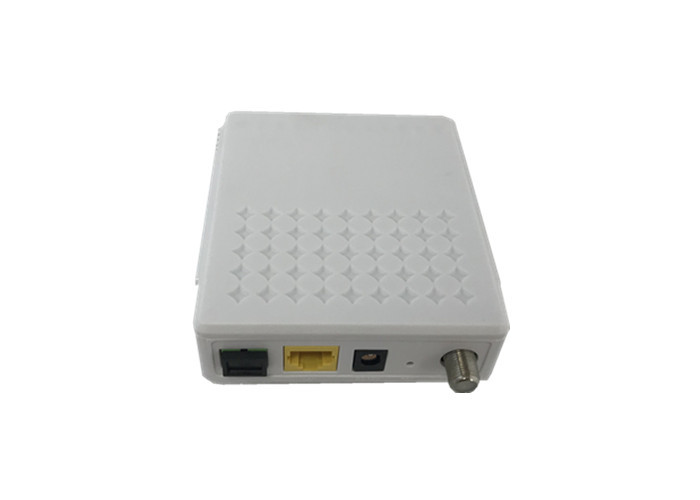

XPON ONT 1GE+CATV is 1GE+CATV XPON (GPON and EPON dual mode) HGU/SFU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit XPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
Product Descriptions:
Ø HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
Product Specification:
| Items | Unit | Specifications |
| EPON IEEE802.3ah, GPON ITU-T G.984.x | |
| Optical interface | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0～+4dBmTransmission distance: 20KM | |
| Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | nm | Tx1310, Rx 1490, CATV 1550 |
| Interface | data | 1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| Indicator | LED | POWER,LOS,PON,LAN,CATV |
| Operating condition | ℃ | Operating temp: -5 ~ +55 |
| Storing condition | ℃ | Storing temp: -30 ~ +60 |
| Humidity | % | 10~90(non-condensing) |
| Power supply | V | DC 12V,0.5A adapter |
| Power consumption | W | ≤6 |
| Dimension | mm | 92x111×30(L×W×H) |
| Net weight | Kg | 0.13 |
CATV
| Items | Unit | Specifications |
| Optical Connector Type | SC/APC | |
| Input optical powerrange | dBm | -18~ +2 |
| Optical return loss | dB | ≥45 |
| Wavelength | nm | 1550 ±10 |
| RF Output Connector | F | Imperial or metric |
| RF Bandwidth | MHz | 47～1000 |
| Slope | dB | 0~2 (47～1003MHz) |
| RF impedance | Ω | 75 |
| RF output return loss | dB | ≥14 dB |
| RF output lever | dBuV | 82(@-7dBm), 75(@-15dBm) |
| AGC Range | dBm | -15~-7 /-12~ -4 /-10~-2 |
| C/N | dB | ≥47 @-7dBm |
| CTB | dB | ≥60 @-7dBm |
| CSO | dB | ≥60 @-7dBm |
| MER | dB | ≥35 |
|
|
