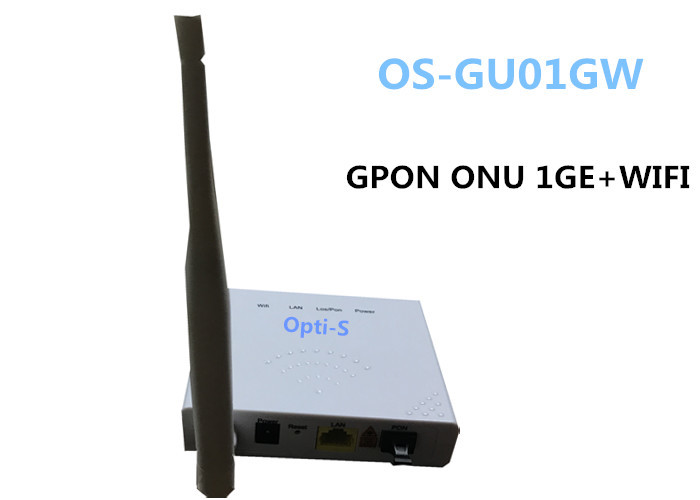

GPON ONT(1GE+WIFI)
Introduction
GPON ONT 1GE is designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. The box is based on the mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QOS for different service. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom.
Special features
lPlug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
lIntegrated OMCI and TR069 remote configuration and maintenance function.
lSupport rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.
lSupport fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.
lFully compatibility with OLT based on Broadcom chipset etc.
lSupport 802.11n WiFi (2T2R) function.
lSupport NAT, Firewall function.
lSupport IPv4 and IPv6 dual stack.
lThe WAN port supports bridge, router and bridge/router mixed mode.
Technical parameters
| Technical items | Descriptions |
| Chipsets | RTL9602C |
| Optical interface | 1 GPON interface, SC single-mode/single-fiber Downstream rate 2.5Gbps,Upstream rate 1.25Gbps |
| Optical Wavelength | TX 1310nm,Rx 1490nm |
| Optical interface | SC/PC |
| RX sensitivity | < -25dBm @ 1490nm |
| WLAN | Compliant with IEEE802.11b/g/n,300Mbps,2T2R one internal antenna and one external antenna |
| WLAN throughput | 1000 Mbps @ 40users,1518bytes, no-encryption 107Mbps @40users,512bytes, encryption |
| LAN interface | 1*10/100/1000Mbps |
| Router throughput | Upstream>390Mbps @ 1518bytes,Downstream >390Mbps @ 1522bytes |
| DC power supply | DC 12V/1A,external AC-DC power adaptor |
| Button | RST, Power, WIFI, WPS, Pair |
| Power consumption | ≤ 10W |
| Operating condition | Operating temp: 0 ~ +45℃,Operating humidity: 10~90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +60℃,Storing humidity:10~90%(non-condensed) |
| Dimension | 137mm*117mm*30mm(length*width*height) |
| Net weight | 0.4Kg |
Data Service Functions
WiFi service
|
|
